FIWARE playground

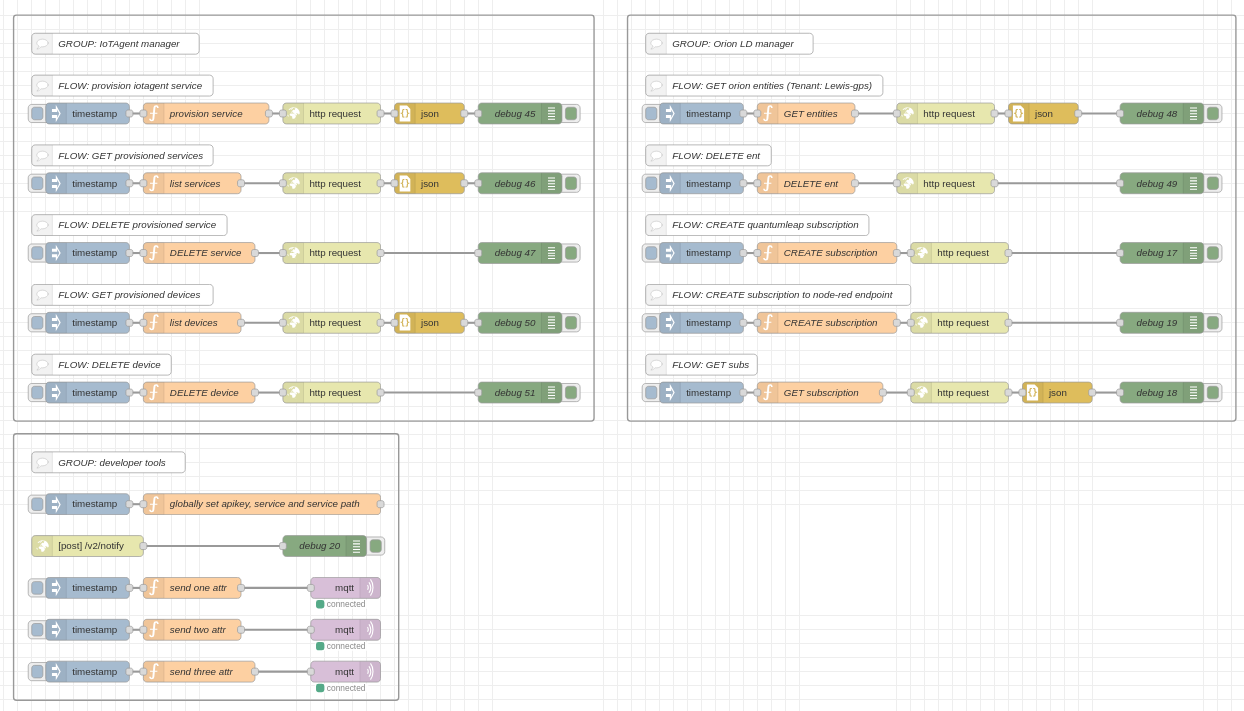

This project shows the core API calls needed to set up a FIWARE IoT Agent and the Orion-LD Context Broker.

The calls:

provision an IoT Agent service that listens on an MQTT broker,
forward incoming device data to Orion-LD as NGSI-LD entities,
create a subscription so Orion-LD sends notifications whenever new updates arrive.

Services Used

FIWARE IoT-Agent JSON – FIWARE agent
FIWARE Orion-LD context broker - Context broker
EMQX broker - MQTT broker

List of used nodes

Inject/Timestamp – Triggers flow execution
Function – Adds custom logic using JavaScript
HTTP Request – Sends HTTP requests to external services
Debug – Displays messages in the debug console
HTTP in – Recieve HTTP messages
JSON - parse JSON to JS object

For details, see Node-RED Documentation

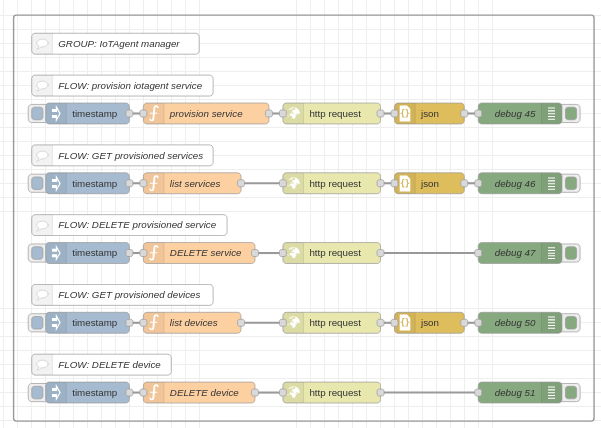

GROUP: IoTAgent manager

This group contains five flows that let you create, list and delete IoT-Agent services and devices through simple Inject-triggered HTTP calls.

For the meaning of service and device in FIWARE—and the full set of provisioning options—see the official IoT-Agent documentation (TODO: add link).

The flows share three tab-level variables:

apikey – appears in the MQTT topic (/<resource>/<apikey>/…) that the IoT-Agent listens to.
fiwareService and fiwareServicePath – sent in the FIWARE-Service and FIWARE-ServicePath headers so you can keep data for different tenants or sub-domains separated.

All requests are made with Node-RED HTTP request nodes. If you’re new to those, check the Node-RED docs (TODO: link).

FLOW: provision iotagent service

A service in the IoT-Agent is a configuration entity that defines how the IoT-Agent interacts with the MQTT broker and the Orion-LD context broker. It specifies the API key (apikey) used to authenticate messages, the resource path (resource) for the MQTT topic, the context broker’s URL (cbroker), and the default entity type (entity_type) for devices.

For example, the following JSON object represents a service configuration:

{
    "apikey": "apikey",
    "resource": "",
    "cbroker": "http://127.0.0.1:1027",
    "entity_type": "devType"
}

This configuration allows the IoT-Agent to listen for MQTT messages on the specified resource path, authenticate them using the provided API key, and forward the data to the Orion-LD context broker. The entity_type defines the type of entities created in the context broker for the incoming data.

FLOW: GET provisioned services

GET /iot/services request can be used to retrieve a list of all provisioned services in the IoT-Agent.

FLOW: DELETE provisioned service

DELETE /iot/services request is used to remove a provisioned service from the IoT-Agent. This operation requires specifying the service’s API key and other relevant details in the request. Once deleted, the service will no longer be available for handling MQTT messages or forwarding data to the context broker.

Example: DELETE /iot/services/?resource&apikey=testing

FLOW: GET provisioned devices

GET /iot/devices

This request retrieves a list of all devices provisioned in the IoT-Agent. Each device represents a physical or virtual entity that sends data to the IoT-Agent, which then forwards it to the Orion-LD context broker.

Provisioned services in the IoT-Agent create new devices by associating them with a specific service configuration. When a device is provisioned, it is linked to the service’s API key, resource path, and entity type. This ensures that the device’s data is correctly routed and stored in the context broker.

FLOW: DELETE device

Deletes a specific IoT device by its unique identifier.

This endpoint allows you to remove an IoT device from the system by providing its ID.

Example Request:

DELETE /iot/devices/{id}

Parameters: - id (path parameter): The unique identifier of the IoT device to be deleted.

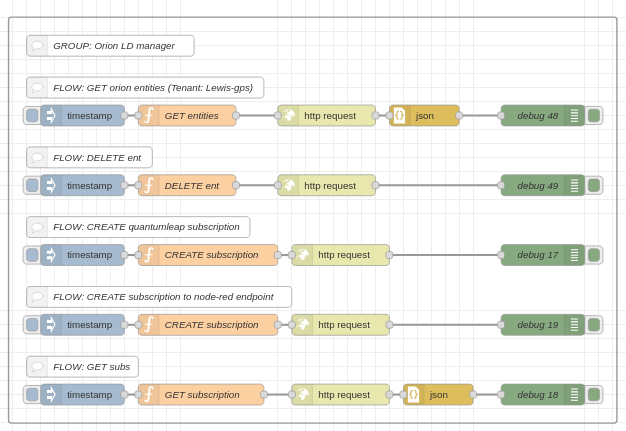

GROUP: Orion LD manager

This group contains five flows that manage entities and subscriptions in the Orion-LD context broker. Click an Inject node to send the corresponding HTTP request.

Reference material: see the official Orion-LD docs for the full NGSI-LD API (TODO: add link).

Shared flow variables

apikey identifies the device/API key used by the IoT Agent (carried in fiware-correlator header).
fiwareService tenant name → FIWARE-Service header.
fiwareServicePath sub-service path → FIWARE-ServicePath header.

All requests use Node-RED HTTP request nodes (TODO: link to Node-RED HTTP node docs).

FLOW: GET Orion entities

GET /ngsi-ld/v1/entities fetches context entities—JSON-LD objects that model real-world devices, rooms, vehicles, etc.

Common query options:

/ngsi-ld/v1/entities
    ?idPattern=.*            # regex over entity IDs
    &type=Room               # filter by @type
    &attrs=temperature,humidity

Example to delete all entities:

GET /ngsi-ld/v1/entities?idPattern=.*

FLOW: DELETE ent

Removes a specific entity. DELETE /ngsi-ld/v1/entities

DELETE /ngsi-ld/v1/entities/urn:ngsi-ld:Room:001

FLOW: create subscription

Creates a generic NGSI-LD subscription that forwards changes to an arbitrary HTTP endpoint.

Payload template:

{
  "type": "Subscription",
  "entities": [{ "type": "Room" }],
  "watchedAttributes": ["temperature"],
  "notification": {
    "endpoint": {
      "uri": "http://example.com/notify",
      "accept": "application/json"
    }
  }
}

Change the entities, watchedAttributes, or endpoint.uri fields to suit your use-case.

FLOW: GET subs

Lists all active subscriptions. GET /ngsi-ld/v1/subscriptions

Query example with pagination:

/ngsi-ld/v1/subscriptions?limit=20&offset=0

Each item includes its id, status, watched entities/attributes, and notification endpoint, letting you audit or debug your subscription setup.

GROUP: developer tools

This group contains five flows:

Init context vars – An Inject node populates the tab-level variables (apikey, fiwareService, fiwareServicePath). Click it once after deploying.
Receive Orion notifications – An HTTP-in/Debug pair captures the callbacks sent by the subscription in the Orion-LD manager group and prints them to the Debug panel.

3-5. Publish sample payloads – Three separate Inject → MQTT flows that push example JSON messages to the broker. Press the Inject button beside each flow to send the sample data.
